48v 51.2v 100ah 200ah 5Kwh 10Kwh Lithium Iron Battery For Residential Amosolar Deep Cycle

Amosolar Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

48v 51.2v 100ah 200ah 5Kwh 10Kwh Lithium Iron Battery For Residential Amosolar Deep Cycle

Brand Name : Amosolar

Model Number : AS48-PW

Place of Origin : Anhui, China

Weight : 47KG

The charging ratio : 100%

The discharge rate : 80%

Storage Type : Room temperature storage

Anode Material : LFP

Application : Home Appliances, BOATS, Electric Power Systems, Solar Energy Storage Systems, Home Appliances;House Use

Product name : Lithium Iron Phosphate Lifepo4 Battery

Capacity : 100Ah 200Ah;5KWH 10KWH

Cycle life : 6000 Times

Voltage : 48V/51.2V

Warranty : 5years, 10YEARS

Type : Li-Ion/lithium/lifepo4

Nominal Voltage : 3.2 Volt

Keywords : Battery Lithium Lifepo4

Certification : CE/RoHS/UN38.3/MSDS

Packaging Details : Cartons and pallets and wooden box

Port : Shanghai / Ningbo /Guangzhou / Shenzhen

Supply Ability : 500000 Piece/Pieces per Month

MOQ : 10 pieces

Price : $699.00/pieces 10-99 pieces

Contact Now

Product Description

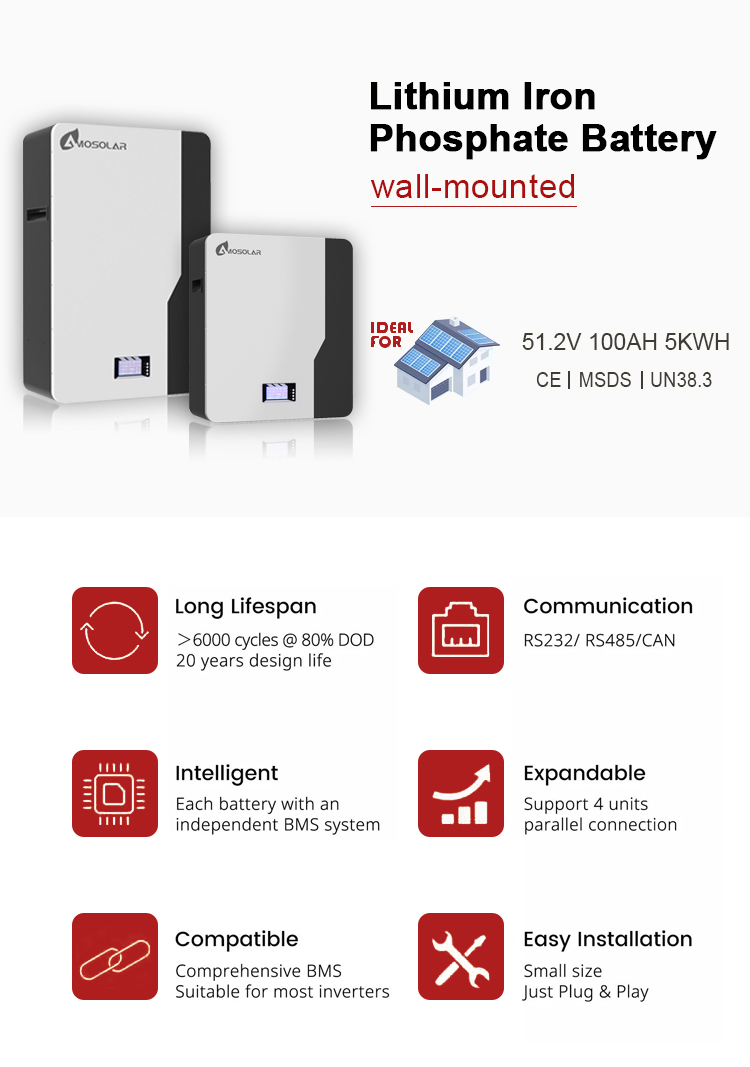

48v 51.2v 100ah 200ah 5Kwh 10Kwh Lithium Iron Battery For Residential Amosolar Deep Cycle
Specification
Model
AS16S100BL-V
AS16S200BL-V


Basic Characteristics
Norminal Voltage
51.2 V
51.2 V
Norminal Capacity
100 Ah
200 Ah
Efficiency
≧ 96%
≧ 96%
Inner Resistance
10 mΩ
7 mΩ
Cell Type
LiFePO4
LiFePO4

Charging
Characteristics
Charge Voltage
58.4 V
58.4 V
Standard Charging Current
20 A
40 A
Max.Continuous Charging Current
100 A
100 A


Discharge
Characteristics
Standard Discharge Current
20 A
40 A
Continuous Discharge Current
100 A
100 A
Peak Discharge Current
200 A ( 3S )
200 A ( 3S )
Discharge Cut-off Voltage
42 V
42 V

Environmental
Requirements
Storage Temperature Range
-5 ~ 40℃
-5 ~ 40℃
Storage Humidity
65 ± 20% HR
65 ± 20% HR
Charge Temperature Range
0 ~ 60℃
0 ~ 60℃
Discharge Temperature Range
-10℃ ~ 65℃
-10℃ ~ 65℃



Mechanical
Characteristics
Size ( L*W*H )
445*170*510mm
445*206*675mm
Package Size ( L*W*H )
575*520*335mm
750*520*385mm
Shell Material
SPCC
SPCC
Net Weight
47KG
85KG
Gross Weight
68KG
110KG
Package Method
1Pcs Per Carton
1Pcs Per Carton


Other
Characteristics
Cycle Life
≧ 6000 times
≧ 6000 times
Self Discharge
2% per month
2% per month
SOC Indication
LED Light & LCD Screen
LED Light & LCD Screen
Communication Protocol
RS485 / CAN
RS485 / CAN
Matching Inverter
Growatt, Goodwe, Deye, Luxpower ,SRNE etc.

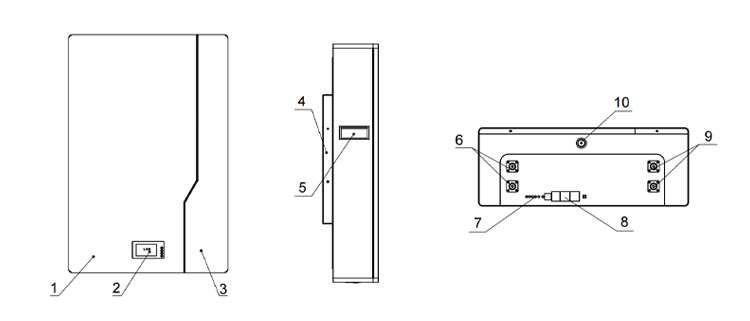

Product Paramenters
48v 51.2v 100ah 200ah 5Kwh 10Kwh Lithium Iron Battery For Residential Amosolar Deep Cycle
1
While Plate
6
M6 Positive termainal (2 pcs)
2
LCD Display
7
Battery Indicator
3
Black Plate
8
RS 485 / CAN
4
Wall Mounted Bracket
9
M6 Negative Temainal (2 pcs)
5
Handle
10
OFF / ON

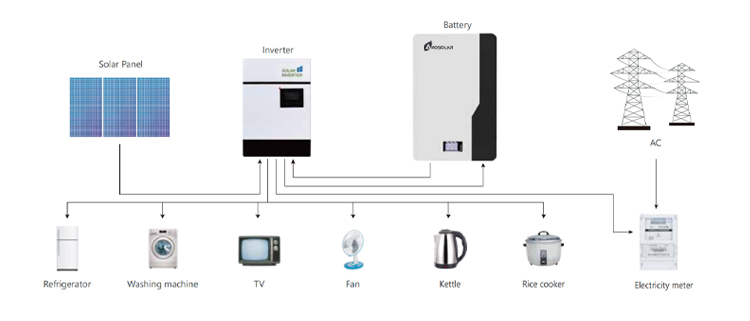

System Diagram
48v 51.2v 100ah 200ah 5Kwh 10Kwh Lithium Iron Battery For Residential Amosolar Deep Cycle
Training and Exhibition
48v 51.2v 100ah 200ah 5Kwh 10Kwh Lithium Iron Battery For Residential Amosolar Deep Cycle
Packaging & Projects
48v 51.2v 100ah 200ah 5Kwh 10Kwh Lithium Iron Battery For Residential Amosolar Deep Cycle
Supported Brands
48v 51.2v 100ah 200ah 5Kwh 10Kwh Lithium Iron Battery For Residential Amosolar Deep Cycle
48v 51.2v 100ah 200ah 5Kwh 10Kwh Lithium Iron Battery For Residential Amosolar Deep Cycle
FAQ
A: What are your main products?
We mainly manufacture solar panel , lead acid battery, lithium battery . And we could offer the complete solar system, solar inverter, solar air conditioning system, solar inverter, heat pump etc.

B: Are you a factory or a trading company?
We are a factory with more than ten years of experience in the production of solar energy series products. You are welcome to visit our factory.

C: Can you print our company logo on the nameplate and packaging?
Yes, we can do it according to your design.

D: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, full support and
assistance services.

E: How does your factory conduct quality control?

Quality first. We have a professional QC team to strictly control the quality.

F: What kind of inverters can this product match?

Off Grid and Hybrid inverter , like Deye inverter, Growatt inverter, Goodwe Inverter, Sofar Inverter etc.
