Amosolar Solar Europe Warehouse 600W 800W Balcony Solar Panel System System Integration

Name: Amosolar Solar Europe Warehouse 600W 800W Balcony Solar Panel System System Integration
Brand: Amosolar
Price: 400.00 USD

Amosolar Solar Europe Warehouse 600W 800W Balcony Solar Panel System System Integration Manufactures

Warranty : 10YEARS

Free installation service : NO

Place of Origin : Anhui, China

Brand Name : Amosolar

Model Number : AS-600/800BL

Application : Home

Solar Panel Type : Monocrystalline Silicon

Battery Type : NONE

Controller Type : MPPT

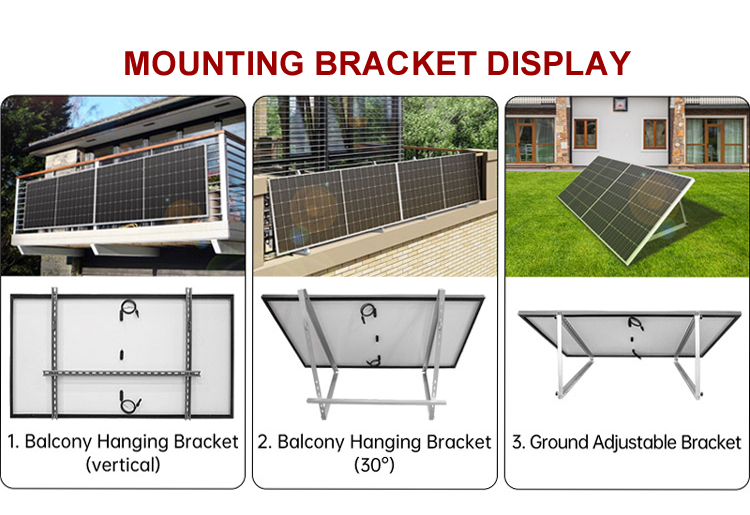

Mounting Type : Roof Mounting

Load Power (W) : 600w,800w

Output Voltage (V) : 230V/220V(180V-270V)

Output Frequency : 60Hz/50Hz

Work Time (h) : 24 Hours

Certificate : CE, ROHS, TUV, IEC

Pre-sales project design : Y

Peak Efficiency : 97.1%/97.3%

Inverter : 600W 800W micro inverter

Protection Class : NEMA-6 / IP-66 / IP-67

MPPT Efficiency : >99.5%

Overvoltage class : III

Noise : <10db

Communication : PLC or WiFi

System Integration : Integration of System and Module

Maximum input DC Current : 18A

Startup Voltage : 24V

MOQ : 100 sets

Price : $400.00/sets 100-999 sets

Contact Now

Product Description

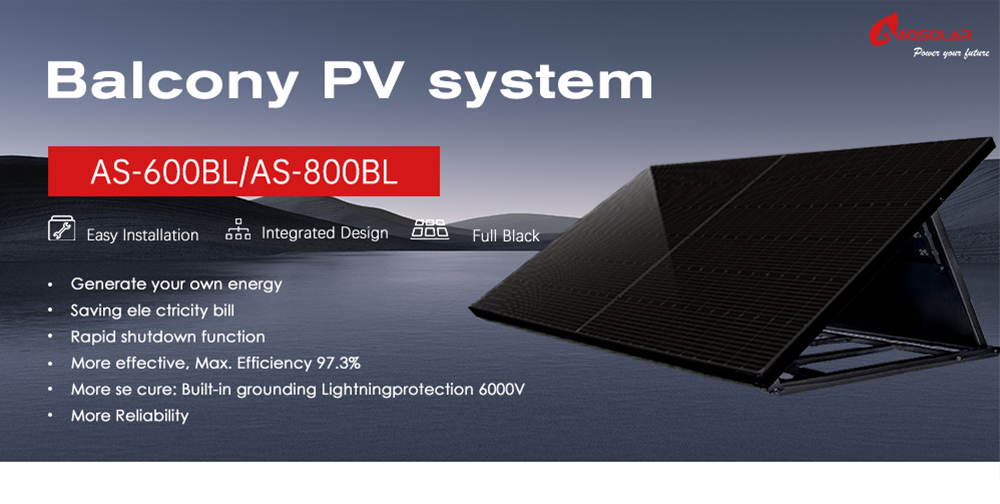

Amosolar Solar Europe Warehouse 600W 800W Balcony Solar Panel System System Integration

Specification

Input Data (DC)
Inverter power	600W			800W
Recommended input Power(STC)	Full Black 410W (PERC) *2	Full Black 430W (N-TOPCON) *2	Full Black 460W (PERC) *2	Full Black 510W (N-TOPCON) *2
Maximum input DC Voltage	60V
Startup Voltage	24V
MPPT Voltage Range	22-55
Maximum input DC Current	18A
Output Data (AC)
Rated output Power	600w			800W
Rated output Current	2.52			3.26
Rated Output Voltage /V	220/230v，L+N+PE
Output Frequency Range	50 / 60Hz
Power Factor (Nominal/Adjustable Range)	1.0/0.8 leading…0.8 lagging
Output Current Total Harmonic Distortion	<3%
Efficiency
Peak Efficiency	97.1%			97.3%
MPPT Efficiency	>99.5%			>99.5%
Night Power Consumption /MW	<100			<100
Mechanical Data
Operating Ambient Temperature Range	'-40°C ~+65°C
Microinverter Dimensions(WHD)	227mm x 132mm x 50mm
Microinverter Weight	2.9kg
Cooling	Natural convection-No fans
Protection Class	NEMA-6 / IP-66 / IP-67
Overvoltage class	III
Features
Noise	＜10db
Communication	PLC or WiFi
System Integration	Integration of System and Module
Certificates	CE,EMC,RED,ROHS,EN50549,VDE-0126,VDE-4105,VDE-0124,CEI 021,UL1741,CSA22.2,CEC,AS 4777
Warranty	10 years

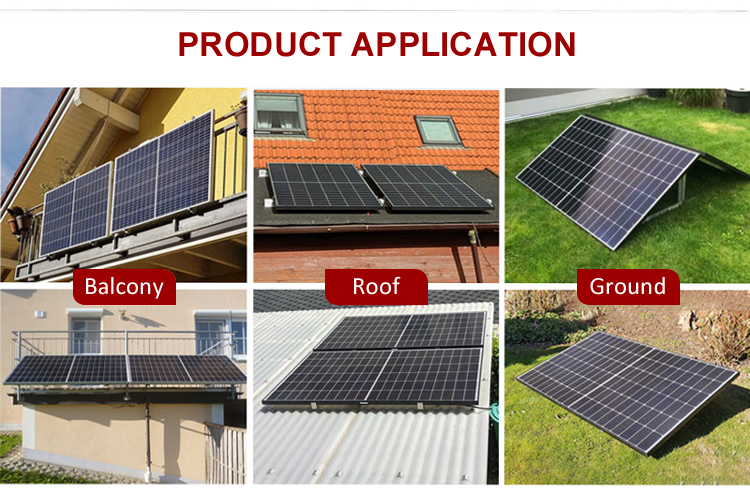

Products Application

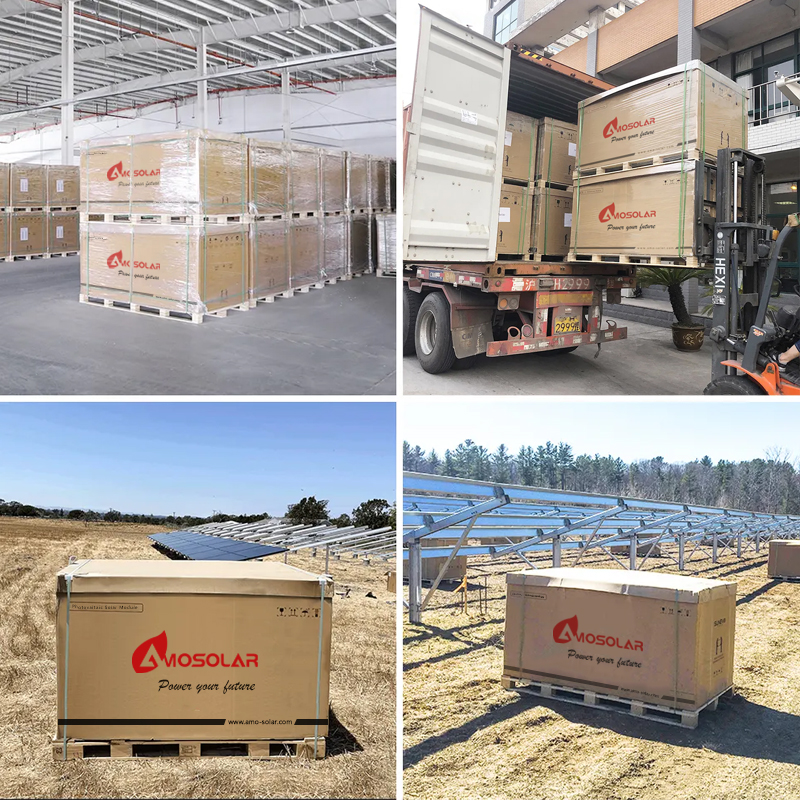

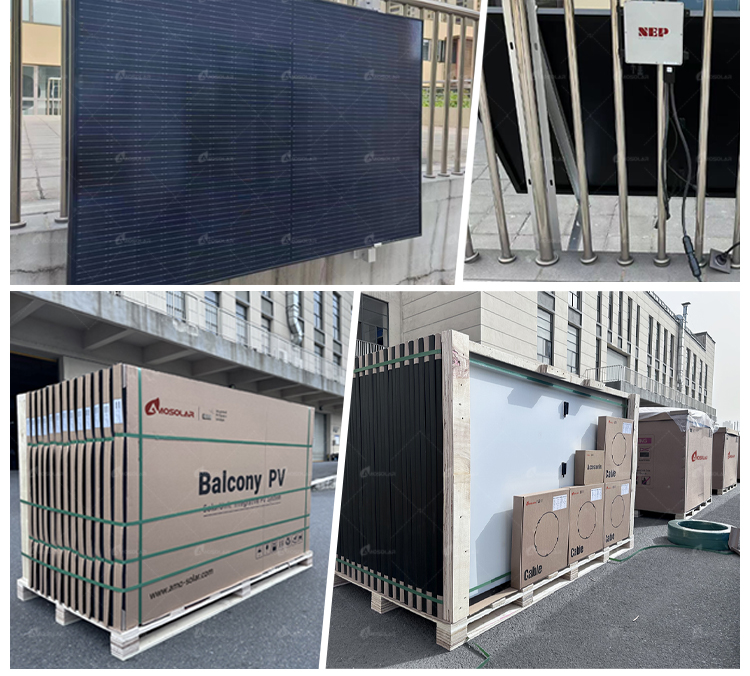

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

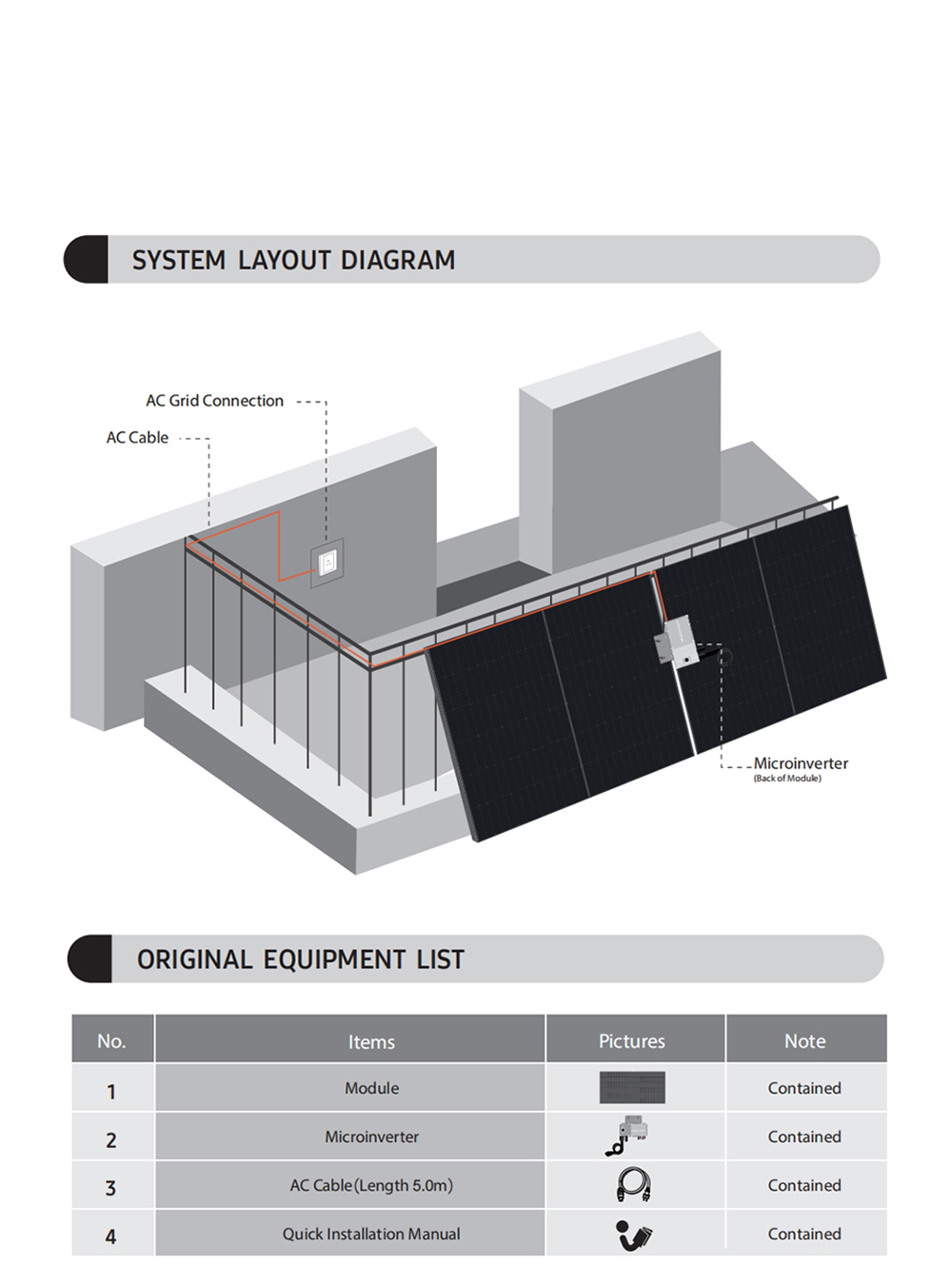

Each balcony solarsystem includes 2 PV Modules, 1 microinverter and accessories such as AC cables ECU for monitoring etc. Packing in 14 Solarsystem per Pallet, each set of Solarsystem is packaged independently in carton box, very convenient for customers to retail local.
