Amsolar 3KW 5KW 8KW 10KW Off Grid Solar Inverter with MPPT Voltage Range of 60-115Vdc

Product Categories

Amosolar Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Amsolar 3KW 5KW 8KW 10KW Off Grid Solar Inverter with MPPT Voltage Range of 60115Vdc
Brand: Amosolar
Price: 440.00 USD

Place of Origin : Anhui, China

Brand Name : Amosolar

Model Number : Amosolar-MHP3/5KVA

Input Voltage : 24/48Vac

Output Voltage : 220/230/240Vac

Output Current : 80A

Output Frequency : 50Hz/ 60Hz

Output Type : Single, Multiple

Size : 130*295*455mm

Type : DC/AC Inverters

Inverter Efficiency : 97%

Certificate : CE/RHOS/IEC

Warranty : 3 years

Weight : 13KG

Product name : on Grid Inverter

Protection : Short Circuit Overload Overvolt Overtemp

Application : Residential Solar Power System

Rated power : 3000-5000W

Battery type : Lead Acid \ Lithium \ Gel

Battery Voltage : 24/48v

MPPT voltage range : 60-115Vdc

OEM : SUPPORT

Price : $440.00/pieces 1-9 pieces

Contact Now

Product Description

Model	Amosolar-MHP3KVA	Amosolar-MHP 4KVA	Amosolar-MHP 5KVA
Battery Voltage	24 VD	24 VD	48 VDC
INVERTER OUTPUT
Rated Power	3000VA/ 3000W	4000VA/ 4000W	5000VA/ 5000W
Parallel Capability	No	Yes, 6 units	Yes, 6 units
AC Voltage Regulation (Batt. Mode)	230VAC + 5%@ 50/60Hz
Surge Power	6000VA	8000VA	10000VA
Efficiency (Peak)	93%	93%	93%
Waveform	Pure sine wave
MPPT SOLAR CHARGER
Maximum PV Array Power	1800W	4500W	4500W
MPPT Voltage Range	30VDC ~ 80VDC	60VDC ~115VDC
Maximum PV Array Open Circuit Voltage	100VDC	145VDC
Maximum Solar Charge Current	50A	80A	80A
Maximum Efficiency	97%
AC CHARGER
Charge Current	30A	60A	60A
AC Input Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
AC BYPASS
Transfer Time	10 ms (For Personal Computers); 20 ms (For Home Appliances)
PHYSICAL
Dimension, Dx W x H (mm)	100 x272 x385	130 x 295 x 455
Net Weight (kgs)	7	11	11
OPERATING ENVIRONMENT
Humidity	15% to 95% Relative Humidity(Non-condensing)
0°C-55°℃Operating Temperature	0°C-55°℃
Storage Temperature	-15°℃ - 60°C

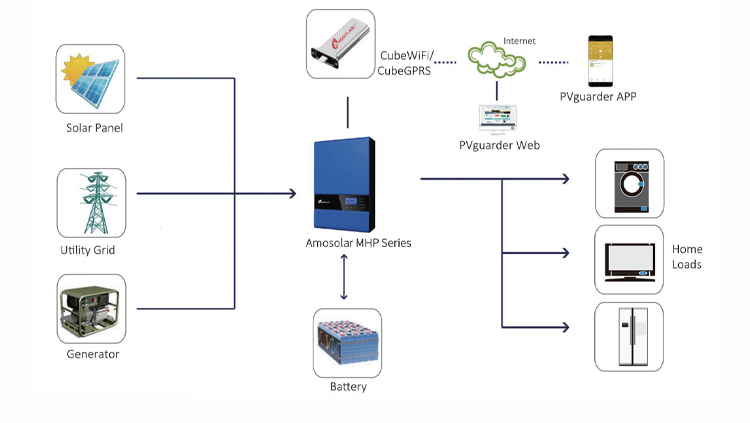

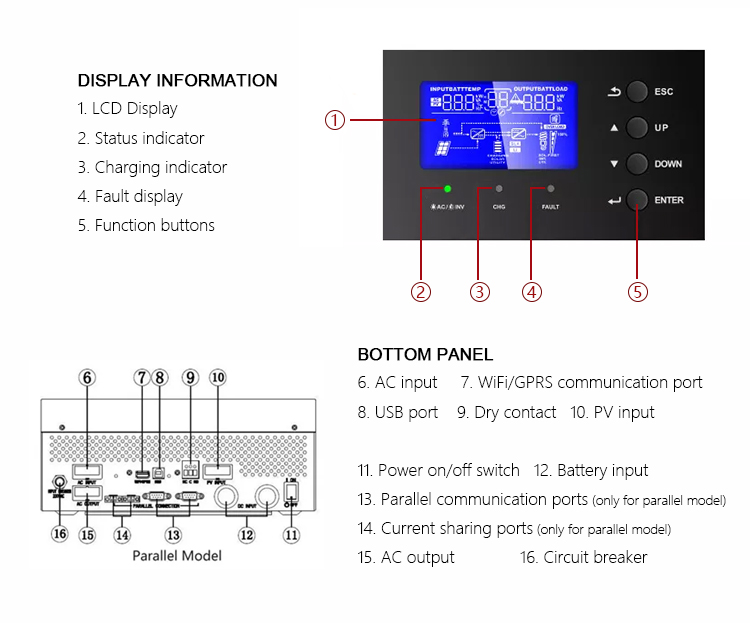

Details Design

About Us

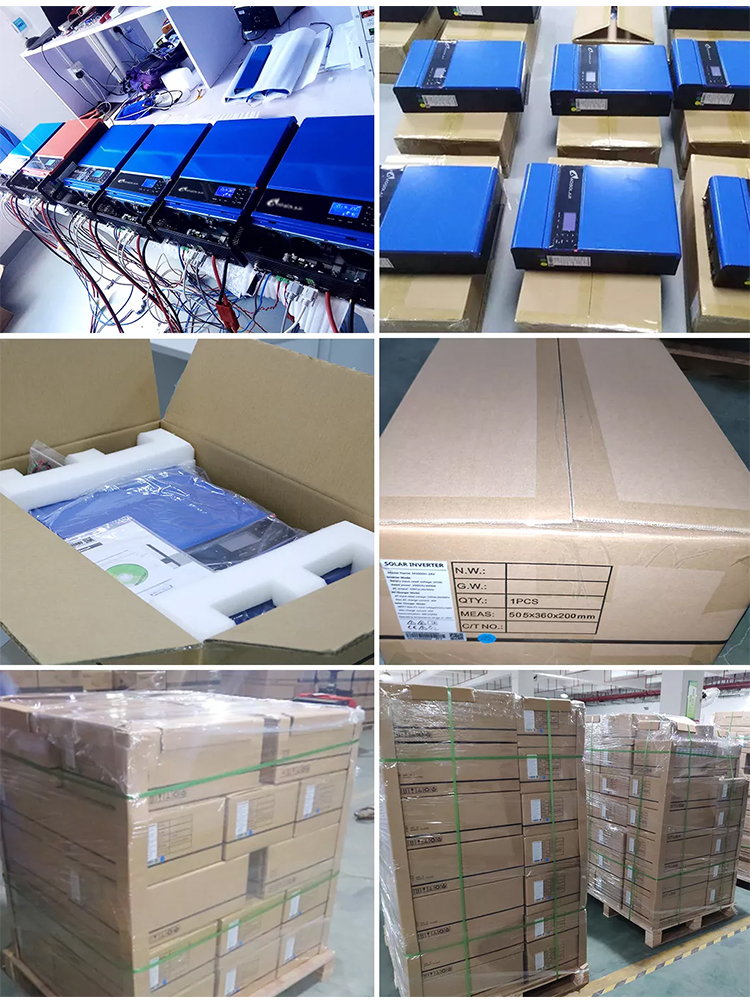

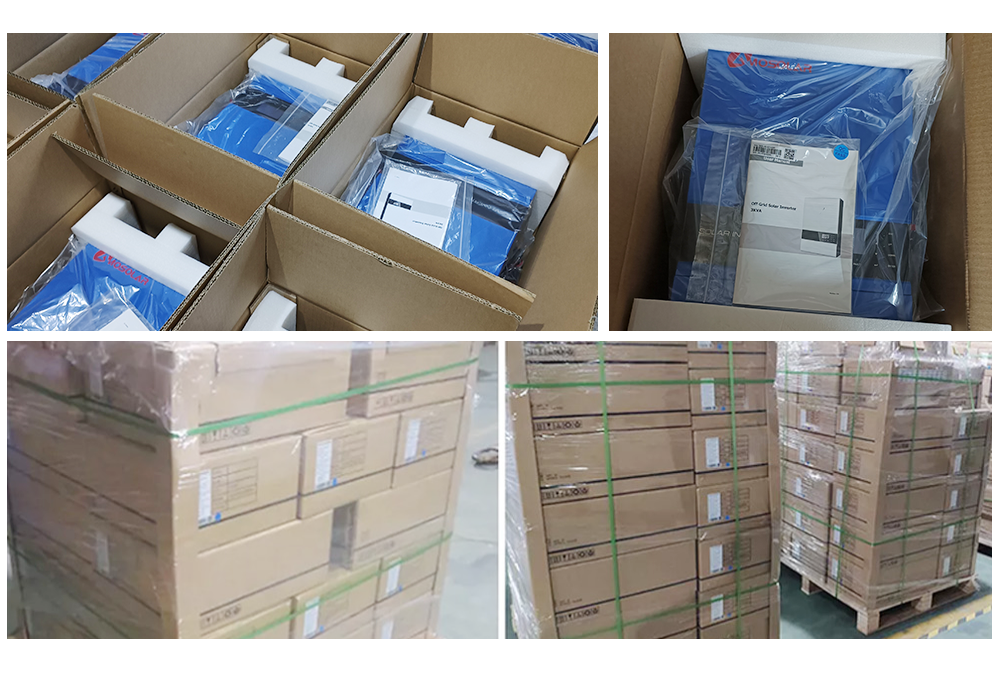

Packaging & Delivery

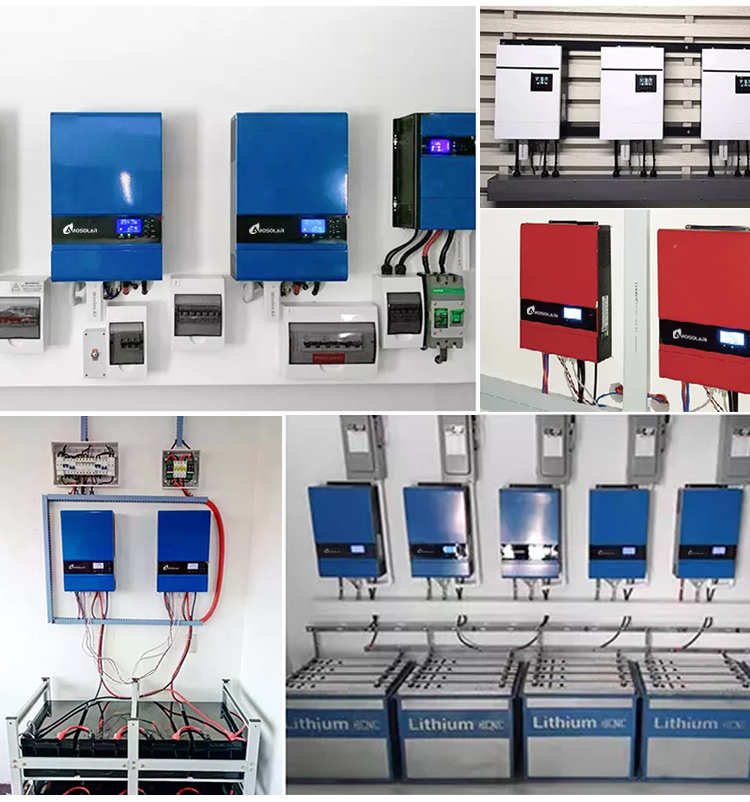

Project

Amsolar 3KW 5KW 8KW 10KW Off Grid Solar Inverter with MPPT Voltage Range of 60-115Vdc Images
