Growatt Brands On Grid Solar Inverter for 5000W Solar Panels and 24V48V Battery Voltage

Name: Growatt Brands On Grid Solar Inverter for 5000W Solar Panels and 24V48V Battery Voltage
Brand: Growatt
Price: 689.00 USD

Growatt Brands On Grid Solar Inverter for 5000W Solar Panels and 24V48V Battery Voltage Manufactures

Place of Origin : China

Brand Name : Growatt

Model Number : MIN2500-10000TL-X

Input Voltage : 80V-550V

Output Voltage : 230V/180V-280V

Output Current : 11.3A-27.2A

Output Frequency : 50/60Hz

Output Type : Single

Size : 375/350/160mm

Type : DC/AC Inverters

Inverter Efficiency : 98.4%

Certificate : CE IEC INMETRO CQC VED AS/NAS, CE TUV IEC VDE

Warranty : 5 Years

Weight : 10.8kg

Product name : On grid inverter

Application : Grid Tie Solar Power System

Rated power : 2.5-10kw

Keyword : Grid Solar Panel Inverter

MPPT voltage range : 80V-550V

Battery type : Lead Acid \ Lithium \ Gel

Battery Voltage : 24V48V

Packaging Details : Cartons and pallets and wooden box

Port : Shanghai / Ningbo /Guangzhou / Shenzhen

Supply Ability : 5000 Piece/Pieces per Month

MOQ : 10 pieces

Price : $689.00/pieces 10-999 pieces

Contact Now

Growatt Brands On Grid Solar Inverter for 5000W Solar Panels and 24V48V Battery Voltage

Model

MIN

2500TL-X

MIN

3000TL-X

MIN

3600TL-X

MIN

4200TL-X

MIN

4600TL-X

MIN

5000TL-X

MIN

6000TL-X

Input data (DC)

Max. recommended PV power (for module STC)

3500W

4200W

5040W

5880W

6440W

7000W

8100W

Max. DC voltage

500V

550V

Start voltage

100V

Nominal voltage

360V

Max. input current per string

13.5A

Number of independent MPP trackers/strings per MPP tracker

2/2

Output data (AC)

Rated AC output power

2500W

3000W

3600W

4200W

4600W

5000W

6000W

Max. AC power

2500VA

3000VA

3600VA

4200VA

4600VA

5000VA

6000VA

Max. output current

11.3A

13.6A

16A

19A

20.9A

22.7A

27.2A

AC nominal voltage

230V(180-280V)

AC grid frequency range

50/60 Hz (45-55Hz/55-65 Hz)

THDI

<3%

AC connection

Single Phase

Efficiency

Max. efficiency

98.4%

Euro weighted efficiency

97.5%

MPPT efficiency

99.9%

Product Description

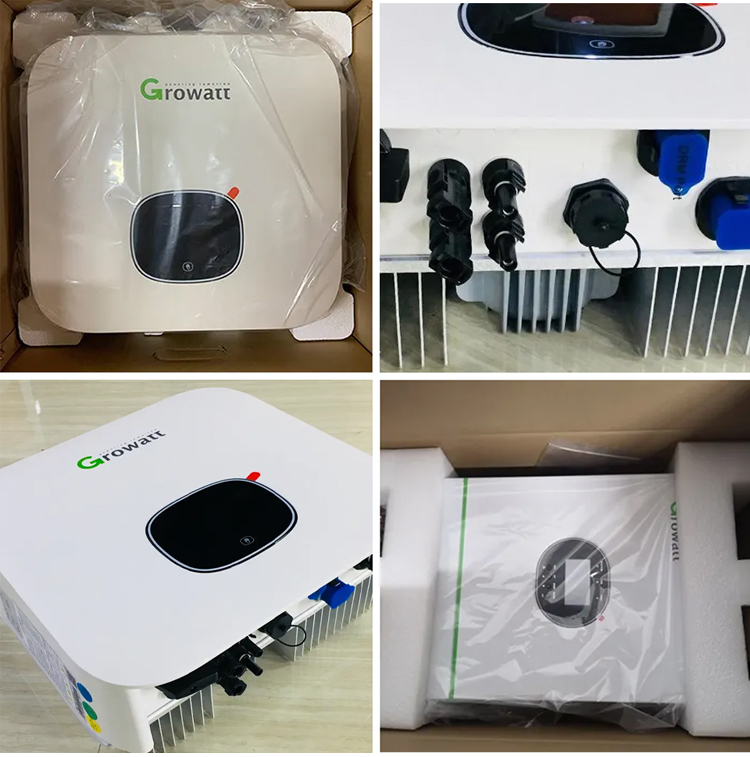

Packaging & Delivery

Project

Why Choose Us

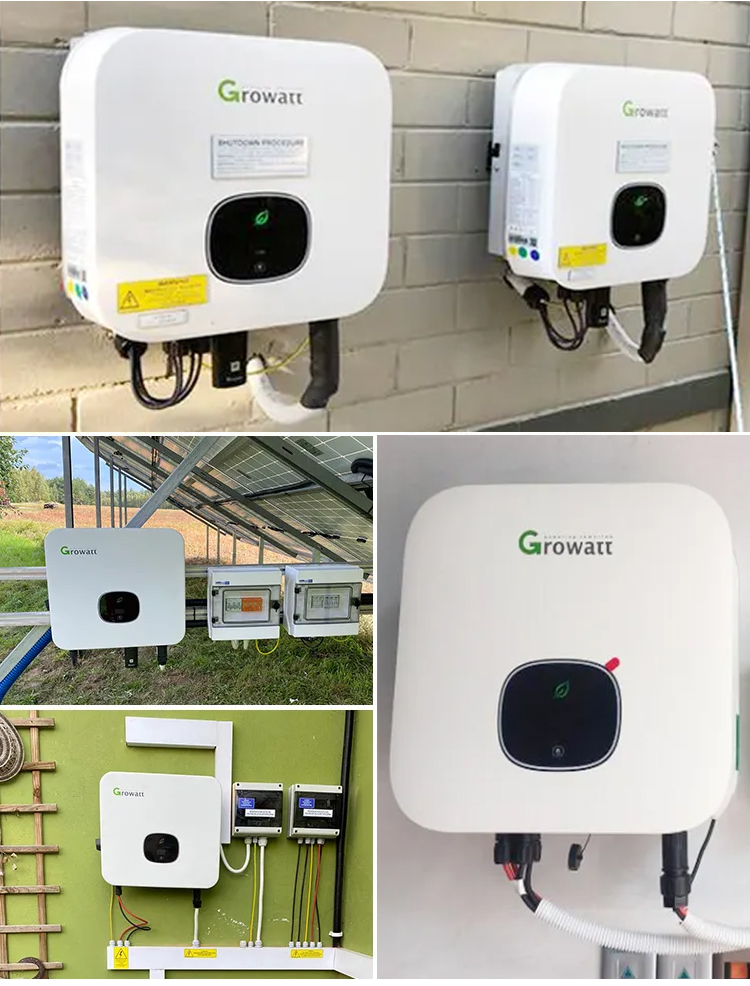

Growatt Brands On Grid Solar Inverter for 5000W Solar Panels and 24V48V Battery Voltage Images
