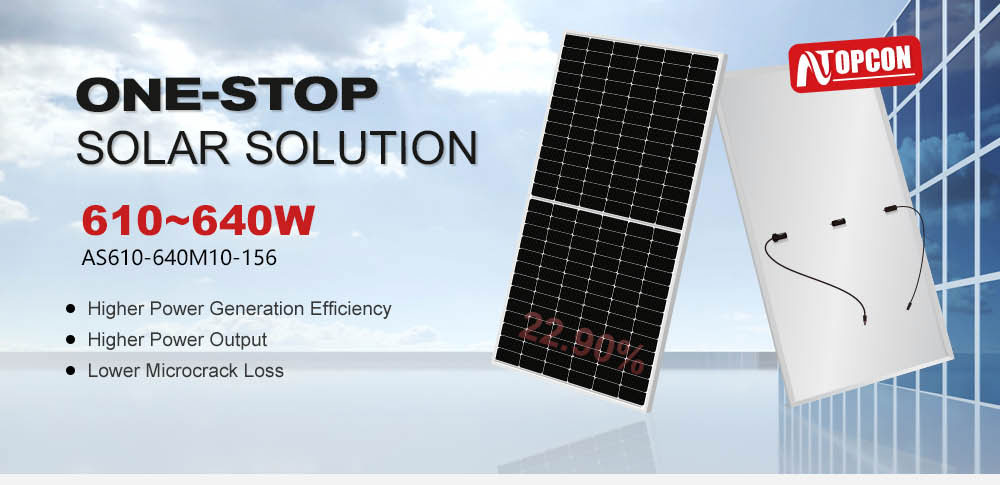

Monocrystalline N Type TOPCON Solar Panels 610W 620W 630W 640W for Solar Power System

Name: Monocrystalline N Type TOPCON Solar Panels 610W 620W 630W 640W for Solar Power System
Brand: Amosolar
Price: 0.16 USD

Monocrystalline N Type TOPCON Solar Panels 610W 620W 630W 640W for Solar Power System Manufactures

Brand Name : Amosolar

Model Number : AMO610-640M10-156

Place of Origin : China

Cell size : 182mmx182mm

Type : Half Cell, N-TYPE, TOPCON

Panel Dimensions : 2465*1134*35mm

Panel Efficiency : 22.90%

Warranty : 30Years

Solar cell : Mono 182*182mm

Cell Type : N-type Mono-crystalline

Application : Solar Power System

Junction Box : IP68

Frame : Anodized Aluminium Alloy

No. of cells : 156 (6*26) Cells

Max. Power : 640Watt

Weight : 30.5kg

OEM Order : Acceptable

MOQ : 1000 watts

Price : $0.16/watts 1000-99999 watts

Contact Now

Company Profile

Monocrystalline N Type TOPCON Solar Panels 610W 620W 630W 640W for Solar Power System

Maximum Power(Pmax)	610w	615w	620w	625w	630w	635w	640w
Open-circuit Voltage (Voc)	57.02	57.14	57.26	57.38	57.50	57.62	57.74
Maximum Power Voltage(Vmp)	46.92	47.12	47.32	47.52	47.72	47.92	48.12
Short-circuit Current (Isc)	13.52	13.58	13.64	13.70	13.76	13.82	13.88
Maximum Power Current (Imp)	13.01	13.06	13.11	13.16	13.21	13.26	13.31
Solar Panel Efficiency	21.82%	22.00%	22.18%	22.36%	22.54%	22.72%	22.90%
Junction Box	IP68
Frame	Anodized Aluminium Alloy
Weight	30.5kg
Power	610w-640w
Cell Type	N-type Mono-crystalline
Solar cell	Mono 182*182mm
OEM Order	Acceptable
Number of Cells	156 (6 * 26)

Amosolar solar panel have full line of international authoritative certificates such as CE, TUV, IEC, INMETRO, etc.

90+ countries where Amosolar PV modules have contributed to the zero-emission goal

SMARTER MANUFACTURING

Utilizingilizing fully automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system.

ADVANCED TECHNOLOGY

Automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system

Quality Control

External Assessment

After Lamination,Check Each Panels
Make sure that the surface of each solar panel is complete, clean and correct.

EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.

IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and test the voltage and current of each solar panel to ensure the efficiency of each solar panel.

Model

ASXXXM10-108

ASXXX310-120

ASXXXM10-120

ASXXXM10-132

ASXXXM10-144

ASXXXM10-156

Modules per pallet

31pcs

36pcs

31pcs

36pcs

31pcs

36pcs

31pcs

36pcs

31pcs

Modules per 40'HQ

806pcs

936pcs

744pcs

864pcs

682pcs

792pcs

720 pcs

620pcs

496pcs
